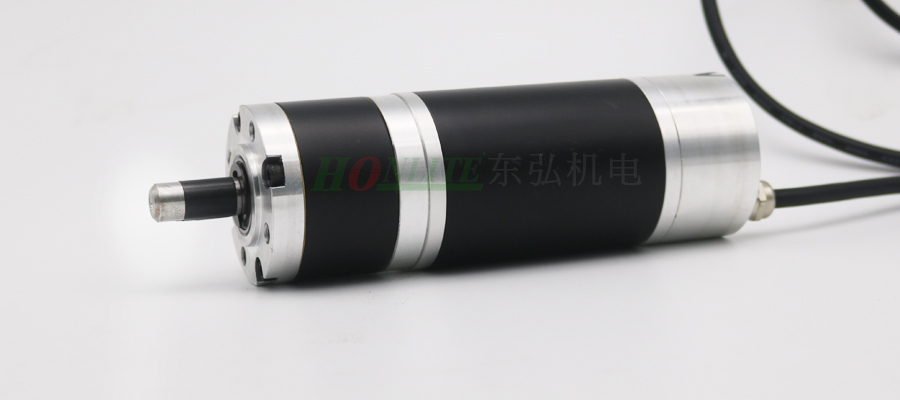

A turnstile (also called a channel gate) is an automatic ticket checking machine installed in a station, airport or other facility. , Using high-quality DC brushless motor drive to control the expansion and contraction of the brake wings, the synchronization is very good, the operation is stable, no jitter, low noise, fast passing speed; the speed and delay time of the opening and closing of the brake wings are adjustable. DC brushless motor plus drive, product intelligent digital display. During the operation of the brushless motor, the decibel is as low as 45dB, and the product runs silently indoors. The brushless motor is easy to maintain and install, reduces mechanical collision and wear, has low noise, and has a longer life. It is suitable for use in subways, school gates, supermarkets, railway stations, airports and other places.
Voltage: 24V
Single motor no-load speed: 2900±10%RPM
Single motor load speed: 1900±10%RPM
Single motor torque: 0.5NM
Reduction ratio: 1:18.8 (customizable)
Gearbox torque: 7.5NM
Power: 100W
Drive: External
Can be equipped with encoder
